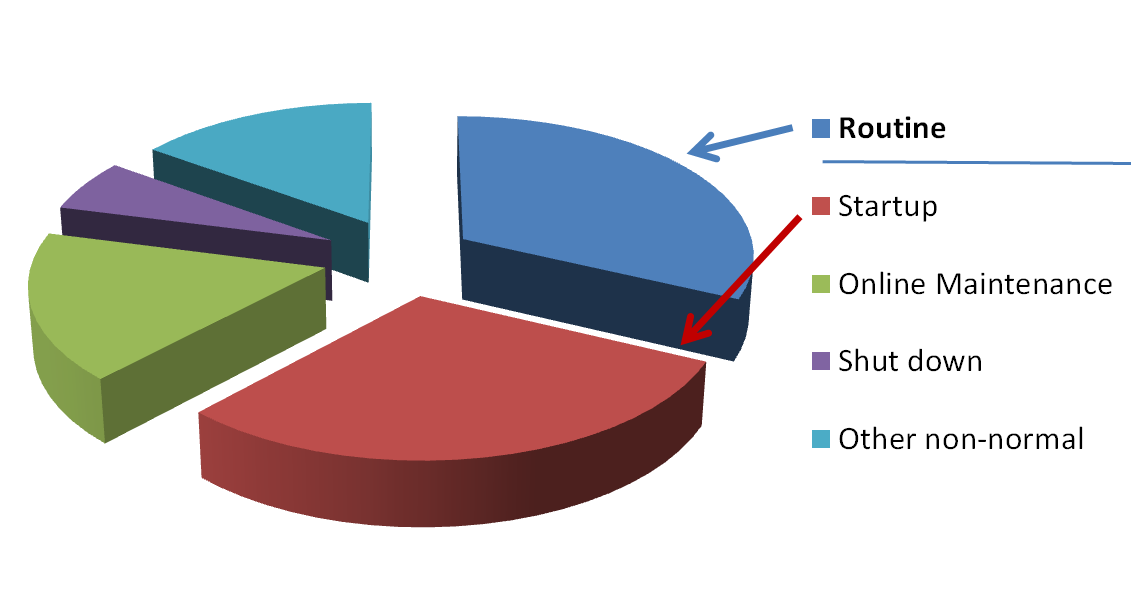

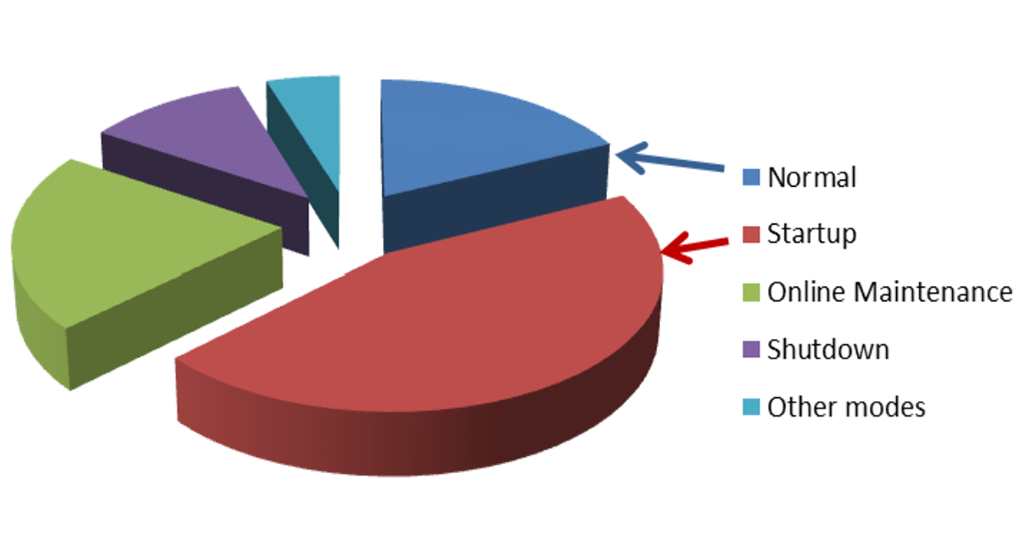

One weakness of most hazard evaluations identified 30 years ago still exists in the majority of PHAs performed around the world. Most PHAs do not thoroughly analyze the errors that can occur during startup, shutdown, and other non-routine (non-normal) modes of operations. Sadly, the commonly used approaches for PHA of continuous mode of operation only find about 5 – 10% of the accident scenarios that may occur during startup, shutdown, and online maintenance. This is despite the fact that about 70% of major accidents occur during non-routine operations.
Many companies have taken small steps to evaluate hazards of non-routine operations by tweaking HAZOP nodes to include deviations of “Startup” and “Shutdown” to each node. This has proven inefficient based on data from the following sources:
- Comparison of analysis results with & without PHA of non-routine procedures
- Number of missing safeguards found when procedures are finally analyzed in the last phase of major capital projects
- Evaluation after accidents that have occurred during non-routine modes of operation (the accident scenarios that occurred were NOT identified in the PHA of normal mode of operation)
The methodology for hazard evaluation of non-normal operating modes will typically include one or both of the following techniques:
- WHAT-IF analysis of procedures – an unstructured brainstorming method without utilization of guide words to uncover potential accident scenarios
- 2 Guide Word HAZOP analysis of procedures – a structured “WHAT-IF” analysis utilizing guide words (i.e., step not performed, step performed incorrectly).
These are then supplemented by use of a Checklist of Human Factors Issues – a checklist used to indicate where generic weaknesses exist that can make errors during any mode of operation more likely, or that can make errors during maintenance more likely.
Increasing Regulatory Pressure
OSHA – The US OSHA PSM regulation requires PHA of all hazards during all modes of operation, and several key citations since 1990 have focused on PHA of non-normal modes. OSHA has announced they are increasing focus on PHA of non-routine modes of operation by adding new guidance to OSHA inspectors (2016). (Reference Necessity of Performing Hazard Evaluations (PHAs) of Non-normal Modes of Operation (Startup, Shutdown, & Online Maintenance) written by Mike Marshall
US CSB – The US Chemical Safety and Hazard Investigation Board (US CSB) has commented on the need for PHAs to address all hazards of the process during all modes of operation. Their clearest statement was in the report 2008-08-I-WV-R113 on the Bayer CropScience accident in Institute, WV, 2008 where they listed lack of PHA of non-routine modes of operation as the major factor of this catastrophe.
EPA – In the Risk Management Program rule (40 CFR 68.24) EPA also recognizes the importance of procedural analysis, by defining the purpose of a PHA to “examine, in a systematic, step-by-step way, the equipment, systems, and procedures (emphasis added) for handling regulated substances.”
PII can help your organization overcome the gap of no “PHAs of Non-normal Operating Modes” by:
- Leading and documenting PHA of procedures for new processes/tasks
- Leading and documenting PHA of procedures for existing (older) processes/tasks
- Training and then Coaching your PHA leaders through their first PHA of procedures
PII also offers courses related to leading PHAs (including non-normal modes) (see courses 8, 8-0 and 9 under the “Training” tab or click on the individual links below):
- Course 8: PHA/HAZOP Leadership Training (5-Day)
- Course 8-0: PHA Overview Training (1-Day)
- Course 9: Updating and Revalidating Process Hazard Analyses (2-Day)
In addition, feel free to download papers written by PII staff related to PHAs/HAZOPs under the “Free Resources” tab (or click on the individual links below):
- Necessity of Performing Hazard Evaluations (PHAs) of Non-normal Modes of Operation (Startup, Shutdown, & Online Maintenance)
- How to Efficiently Perform the Hazard Evaluation (PHA) Required for Non-Routine Modes of Operation (Startup, Shutdown, Online Maintenance)
- Optimizing Qualitative Hazard Evaluations for Maximized Brainstorming
- Controlling Risk during Major Capital Projects
- Addressing Human Errors During Process Hazard Analyses
